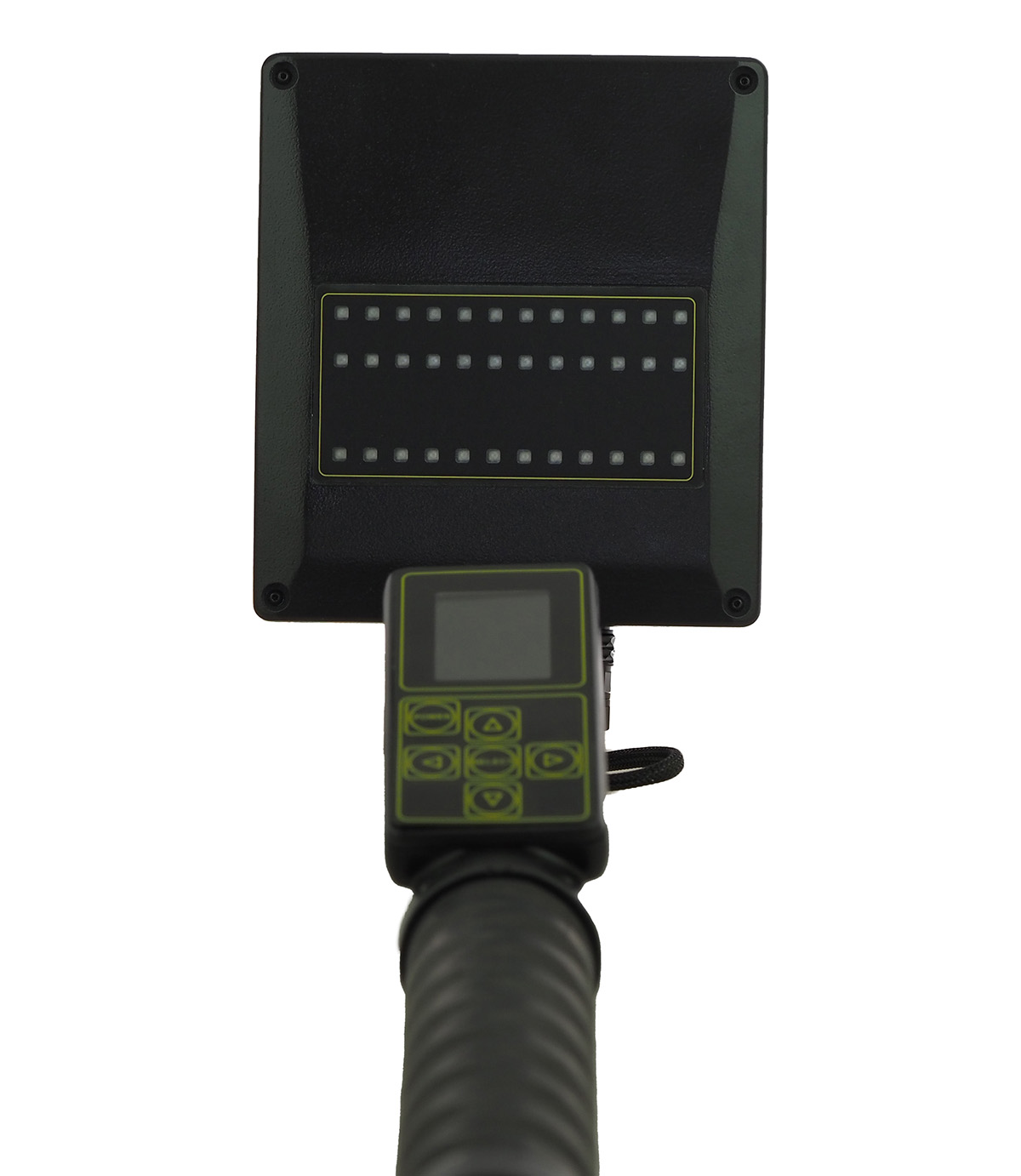

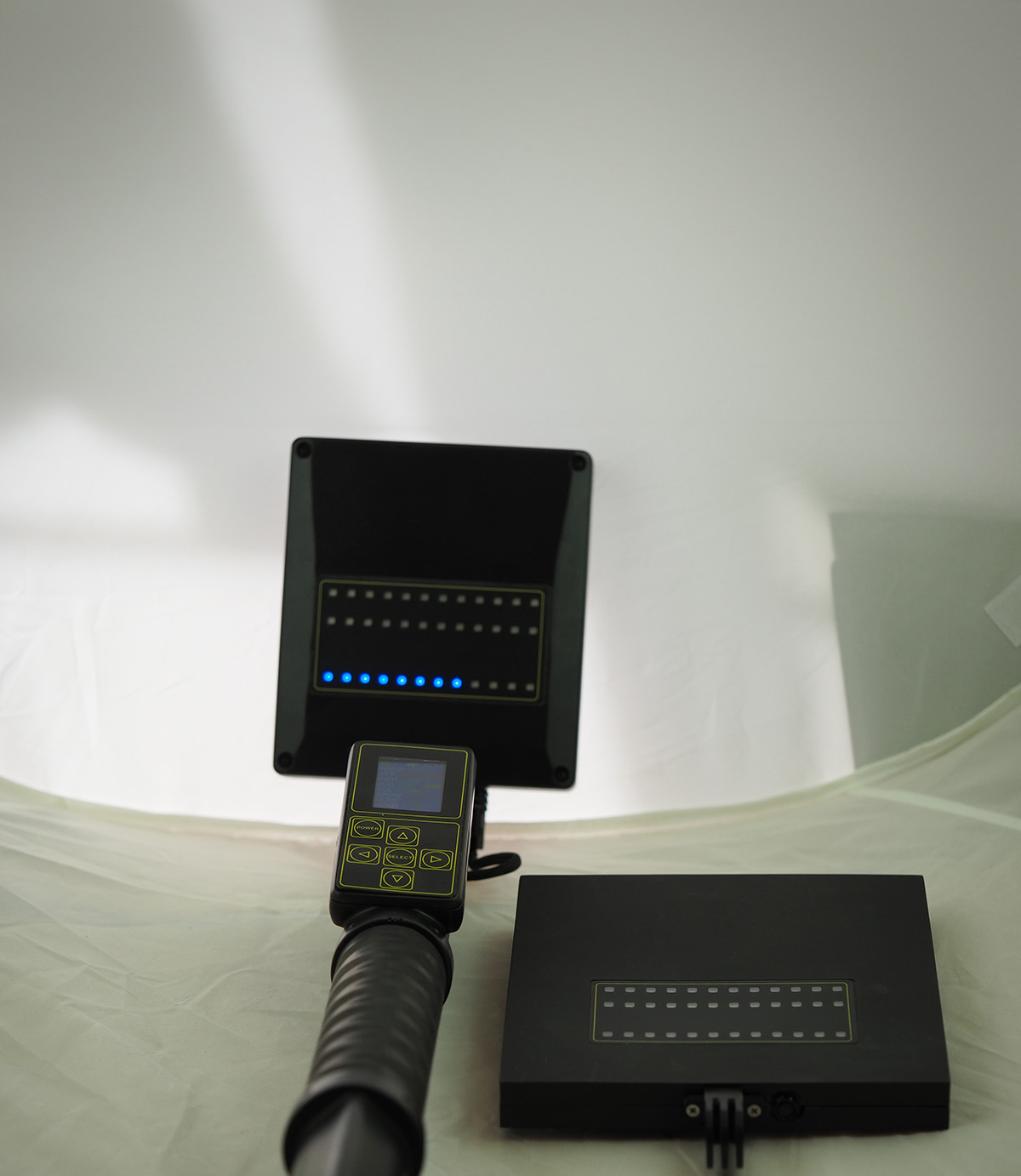

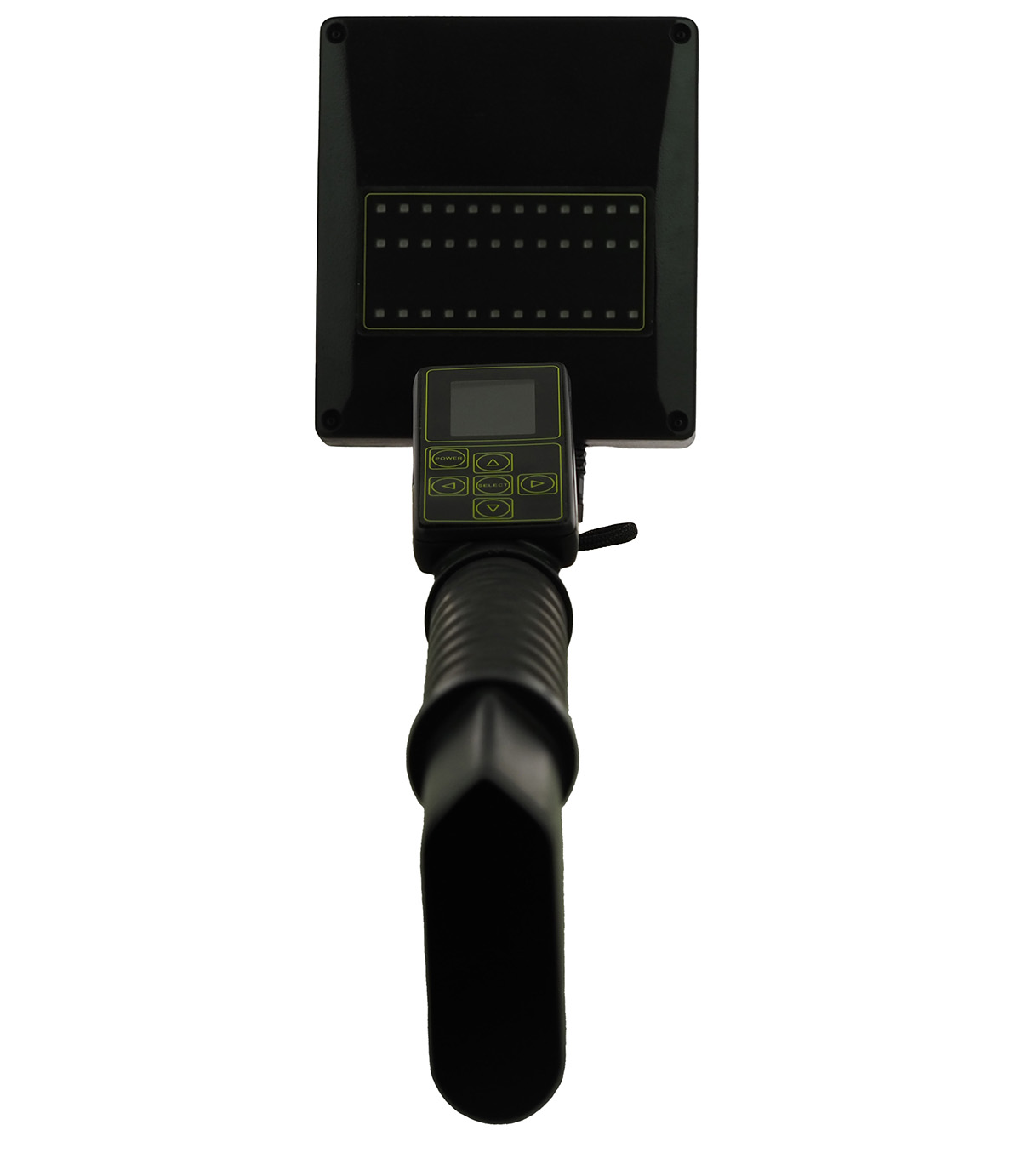

MGT Netscope-1 — Non-Linear Junction Detector
MGT Netscope-1 is an advanced non-linear junction detector developed for professional technical-search and counter-surveillance operations requiring reliable localisation of concealed electronic devices. It is intended for the detection of semiconductor-based targets such as hidden microphones, bugs, recorders, audio-video devices, cellular phones and related electronic components.
The system uses two probing frequency ranges so the operator can select the most appropriate search profile for the environment and target. The lower range around 880 MHz is suited to search work in environments with higher attenuation, such as concrete structures or damp soil, while the 2.4 GHz range is useful for tasks such as luggage inspection or locating SIM-card-based electronics.

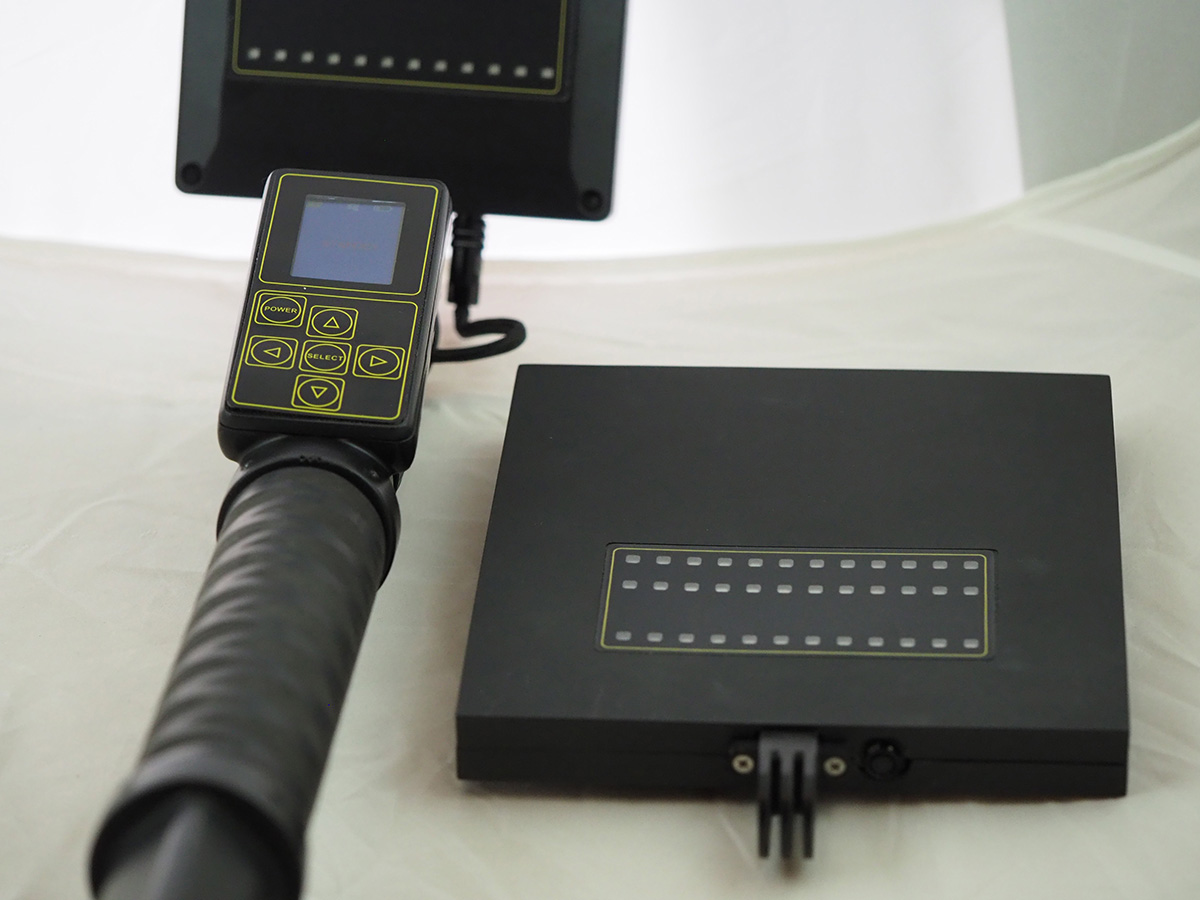

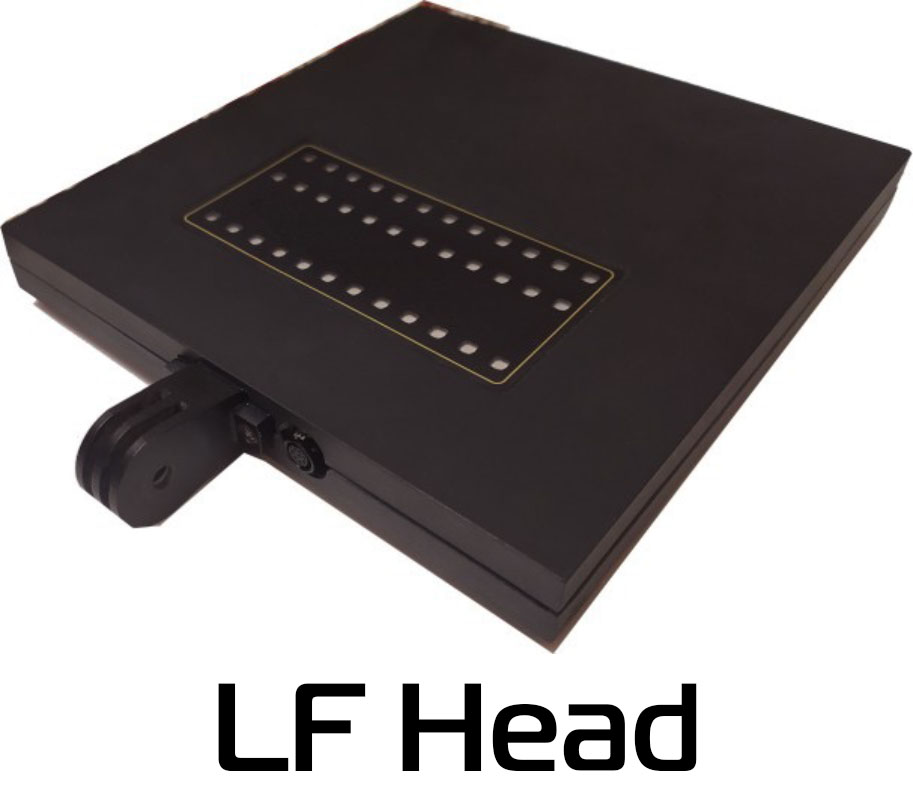

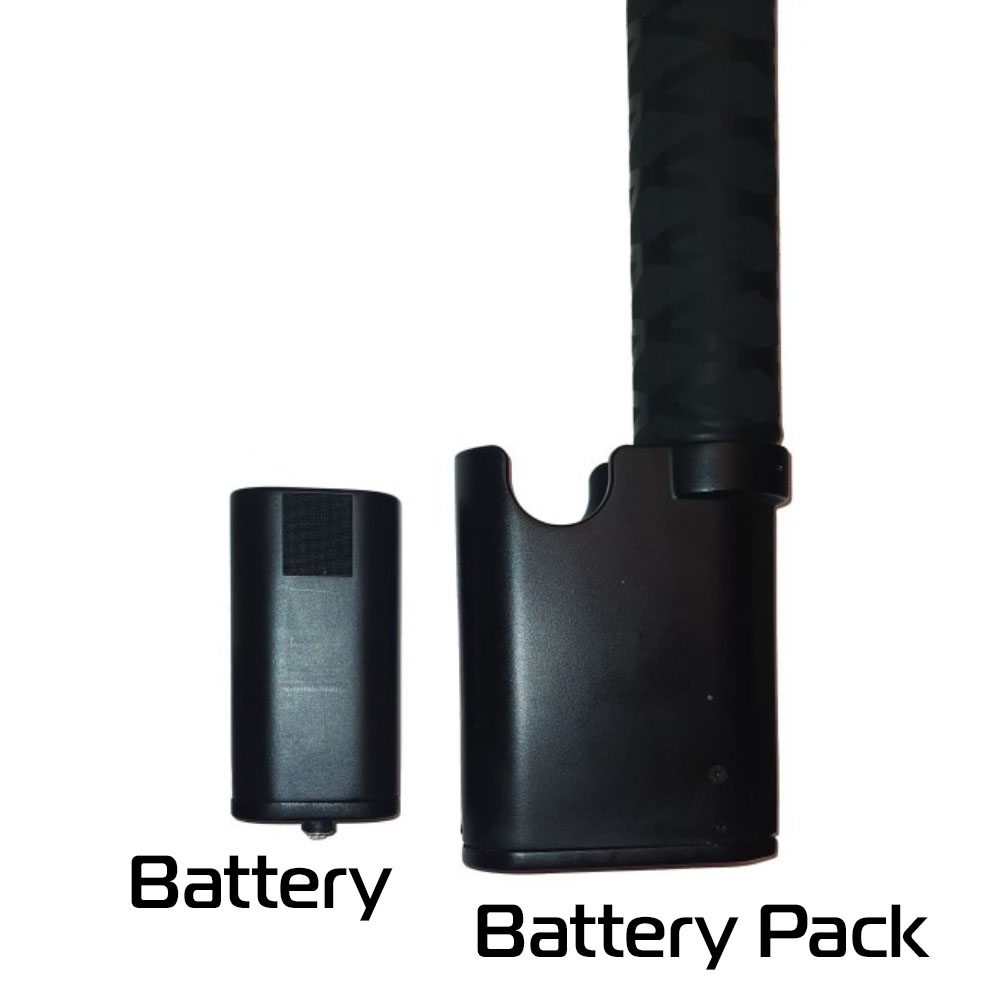

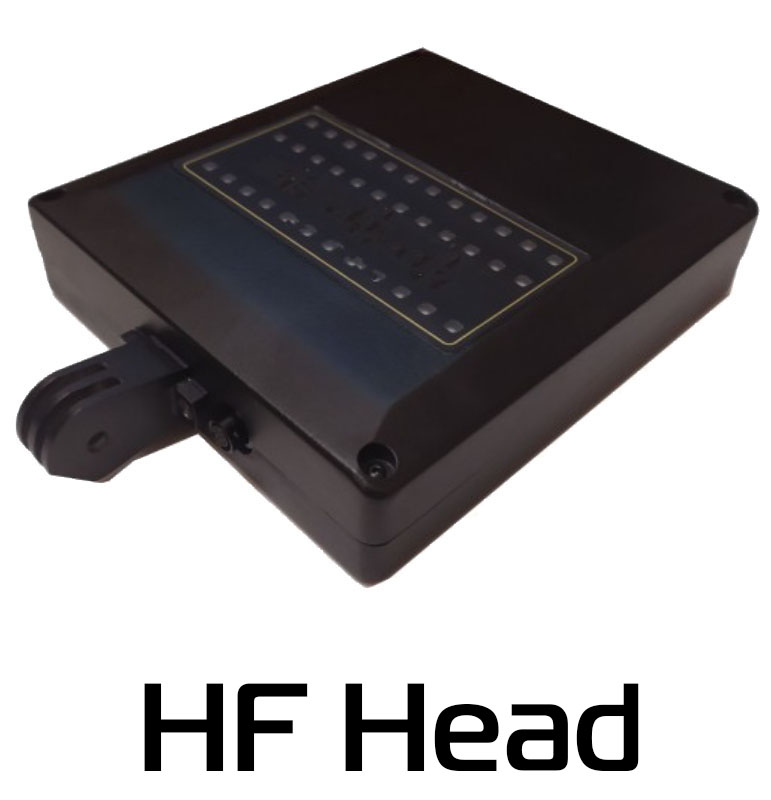

Netscope-1 is configured around interchangeable HF and LF heads, together with a field-ready power arrangement using a dedicated battery and battery pack. This gives operators a flexible platform for structured inspection work across rooms, furnishings, structural elements and concealed spaces.
- Dual probing ranges: 883.7–888.7 MHz and 2.406–2.414 GHz.
- Output power: 30 dBm continuous / 35 dBm (3 W) pulse.
- 2nd/3rd harmonic receivers: 1.767–1.777 GHz and 4.812–4.828 GHz.
- Sensitivity: -120 / -115 dBm.
- Interchangeable HF and LF heads for different search conditions.
- Weight: 1.9 kg including battery.
Highlights
- The 880 MHz probing range is well suited to inspections in environments with higher attenuation.
- The 2.4 GHz range supports search tasks such as luggage inspection and locating SIM-card-based electronics.
- Dual-head configuration helps adapt the system to different operational needs and search profiles.
Technical overview
System configuration
| Probing frequency | 883.7–888.7 MHz & 2.406–2.414 GHz |
|---|---|
| Output power | 30 dBm continuous / 35 dBm (3 W) pulse |
| 2nd / 3rd harmonic receivers | 1.767–1.777 GHz & 4.812–4.828 GHz |
| Sensitivity | -120 / -115 dBm |
| Head configuration | Interchangeable HF head and LF head |
| Weight | 1.9 kg including battery |

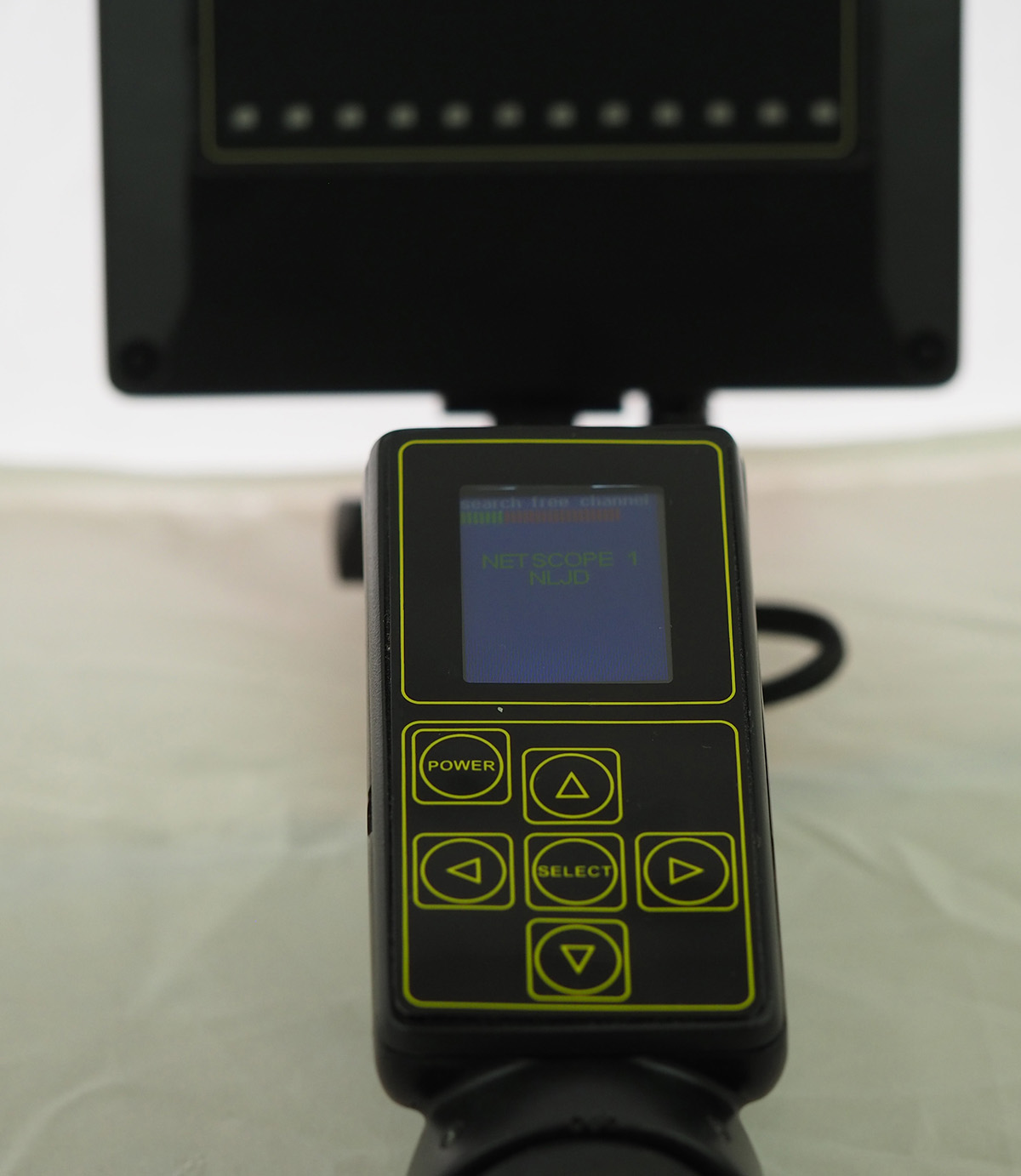

Product gallery
Procurement, compliance & support
Supply is restricted to qualified government, defence, law-enforcement and accredited professional security customers or authorised partners. End-use and export controls may apply. Confidential product information, technical guidance and operator support are available on request.
