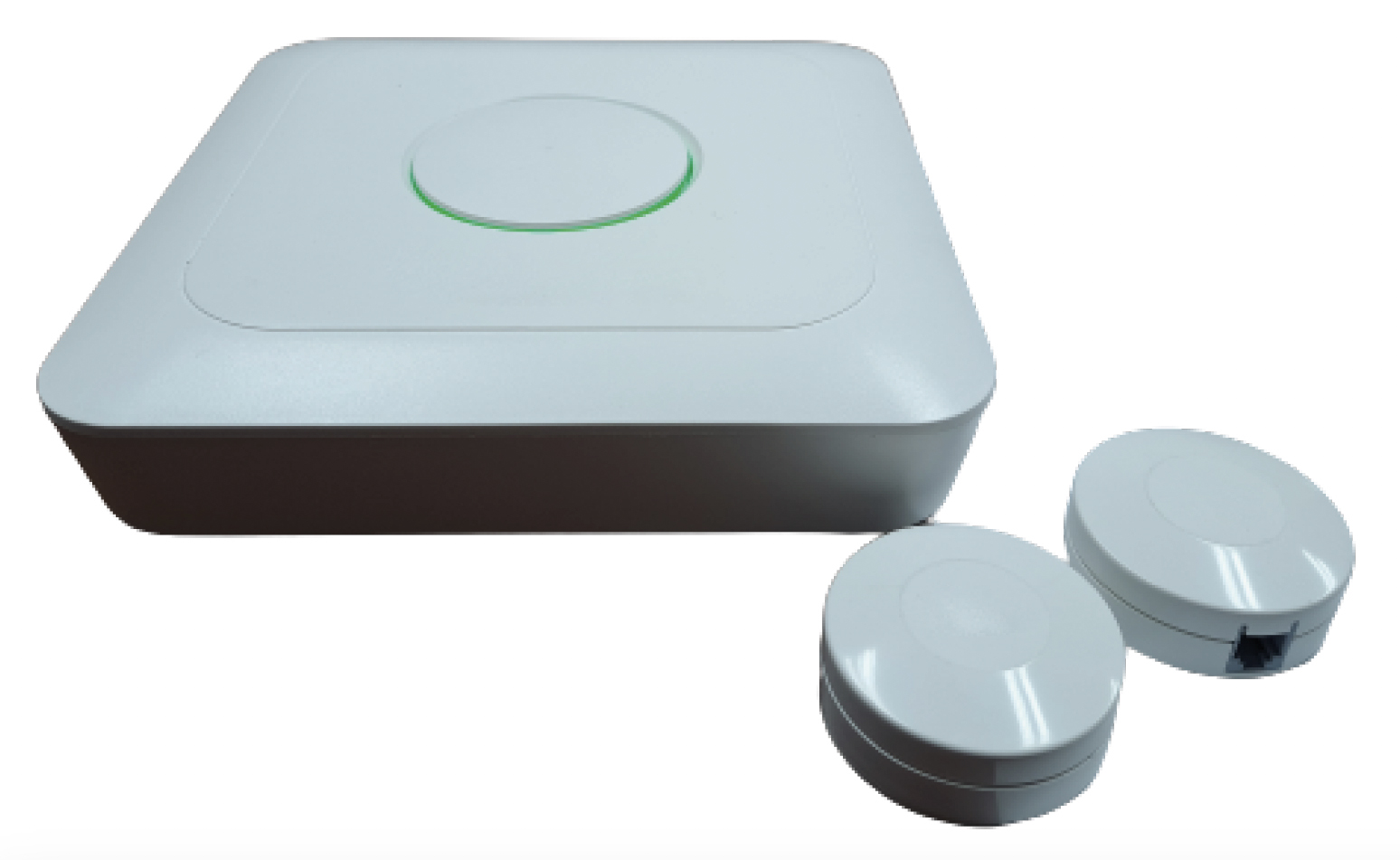

MGT RF-247 — 24/7 RF Surveillance Detection System

The MGT RF-247 is a professional wide-band RF surveillance detection system designed for continuous monitoring of protected environments. It is intended to help identify suspicious wireless activity, support technical security procedures and provide continuous situational awareness in areas where unauthorized transmissions must be detected promptly.

The system supports both local operation and remote monitoring, enabling deployment as a standalone device or within a broader security infrastructure. Its architecture is designed to support structured monitoring workflows, real-time alerting and scalable multi-unit installations across professional TSCM environments.

• Continuous 24/7 RF monitoring for sensitive and controlled environments.
• Remote supervision capability via networked infrastructure.
• Real-time alerting for suspicious RF activity.
• Designed for professional TSCM and technical security workflows.

Detection Capabilities

MGT RF-247 is designed to detect a broad range of RF transmission sources commonly associated with covert surveillance, unauthorized communications or restricted wireless activity.

• RF bugs and covert transmitters.
• Cell phones and modems operating on supported cellular standards.
• Wireless data transmitters including 4G, WLAN and Bluetooth activity.
• DECT cordless communication systems and related wireless devices.
• Analog radio listening devices and similar signal sources.
• Frequency-hopping transmission sources in professional monitoring scenarios.

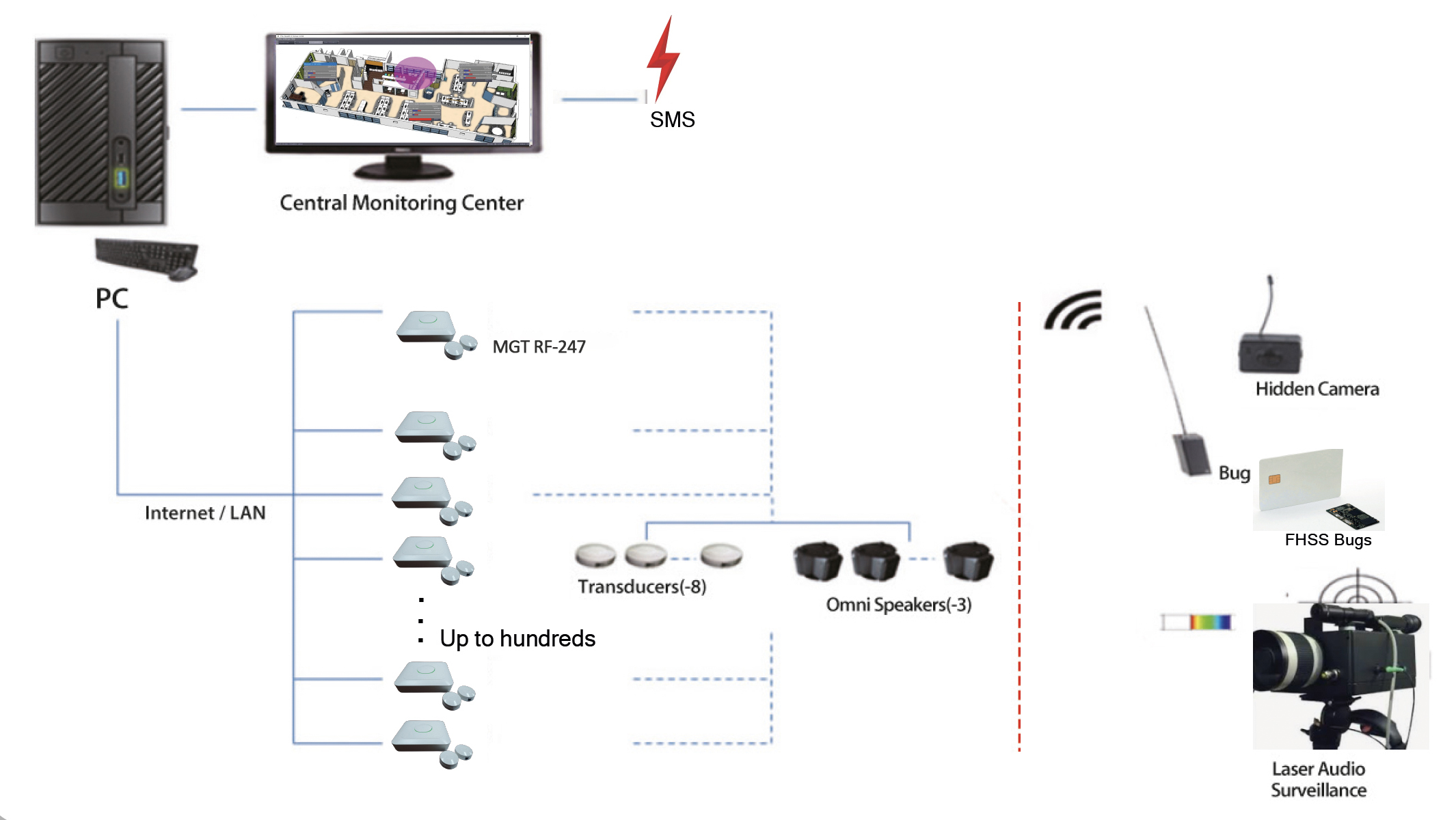

System Architecture

The platform can be operated directly on site or remotely controlled through a central monitoring environment. This allows the system to support structured security operations where event awareness, escalation and logging are important parts of the workflow.

• LAN / WLAN support for remote monitoring and control.
• Real-time notifications when suspicious signals are detected.
• Event storage and signal logging support.
• Scalable deployment architecture for extensive group monitoring.

Location Support

One of the key operational strengths of the system is its support for RF source location workflows. In multi-unit configurations, the platform can assist with identifying the origin of suspicious transmissions and support signal-tracking procedures through compatible search receiver methods.

This makes the system suitable not only for detection, but also for structured follow-up actions where identifying the physical source of the transmission is operationally important.

Applications

• VIP rooms and executive meeting environments.
• Meeting rooms, offices and controlled communication areas.
• Exam rooms and testing facilities.
• Prisons and correctional facilities.
• Restricted environments where unauthorized wireless activity must be detected quickly.

Procurement, compliance & support

Availability may be restricted to qualified government, defence, law-enforcement and professional security customers or accredited partners. End-use conditions, deployment context and applicable regulatory frameworks may apply depending on destination and project requirements.
