MGT 2010 Laser Monitoring System — Acoustic Room Monitoring System
MGT 2010 Laser Monitoring System is a professional acoustic room monitoring platform that uses a laser-based method to recover audio through window surfaces. It is designed for specialist surveillance and observation tasks where remote monitoring of speech and room activity is required without direct physical contact with the target structure.
The system works by directing an invisible laser beam towards the target window. Vibrations of the pane, caused by sound waves inside the room, are detected by the optical receiver and converted into an audio signal for monitoring and analysis.
- Laser-based remote monitoring through window surfaces.
- Invisible laser beam to the human eye.
- Headphone and line-out audio access for monitoring workflows.
- Adjustable low-pass and high-pass filters for received audio optimisation.
- Tripod-mounted optical platform for stable aiming and field deployment.
- Designed for professional surveillance and specialist observation tasks.
Highlights
- High directional microphone concept with operational range of up to 200 metres, subject to weather conditions.
- Dedicated software and hardware architecture for specialist field use.
- Low exposure profile with remote monitoring capability.
- Built as a top-performing professional system for acoustic room monitoring applications.
Technical overview
Overview / key points
| Laser visibility | Invisible to the human eye |
|---|---|
| Operational range | Up to 200 metres, subject to adverse weather conditions |
| System concept | Dedicated software and hardware |
| Exposure profile | Low-risk exposure |
| Class | Top-performing professional system |
MGT 2010 Laser Transmitter
| Laser type | Semi-conductor laser |
|---|---|
| Animated wave length | 790 nm |
| Output power | 30–50 mW, internal controlled |
| Beam focusing | f = 75 mm |
| Target finder | Rifle scope 4×15 |
| Search tone | Switchable |
| Power supply | 12 V DC |
MGT 2010 Laser Receiver
| Receiving module | PSD with optical bandpass filter |
|---|---|
| Lens | f = 5–50 mm |
| Connection | Headphones, line out |
| Voice filter | Low-pass and high-pass, adjustable |
| Optical beam finder | B/W camera with lens 5–50 mm |
| Power supply | 12 V DC |
| Power consumption | Approx. 170 mW (with camera), 60 mW (camera switched off) |

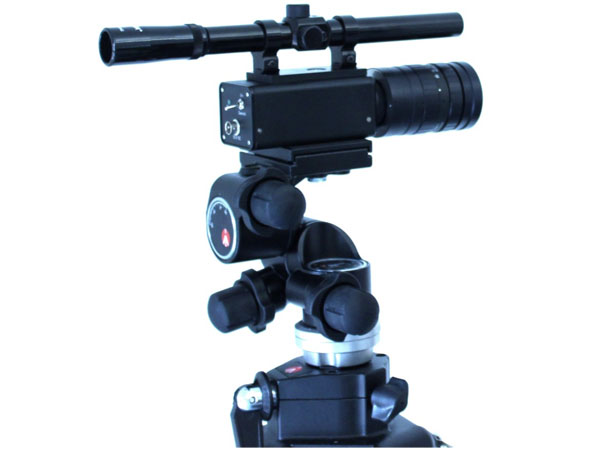

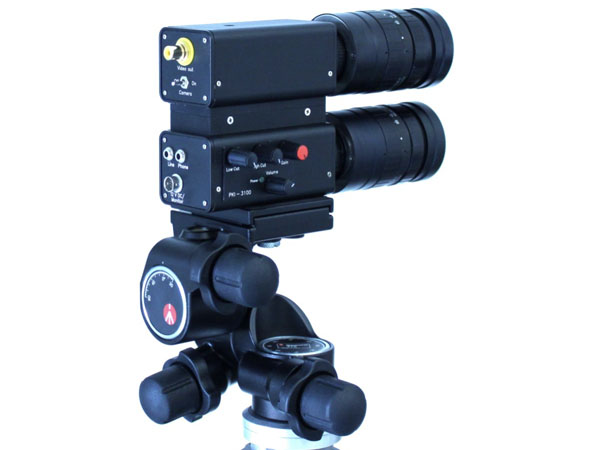

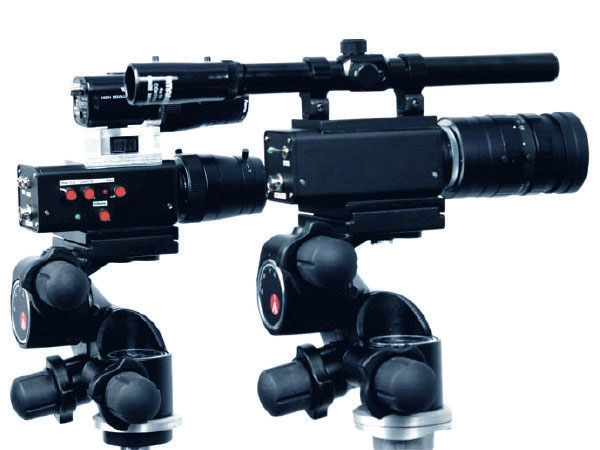

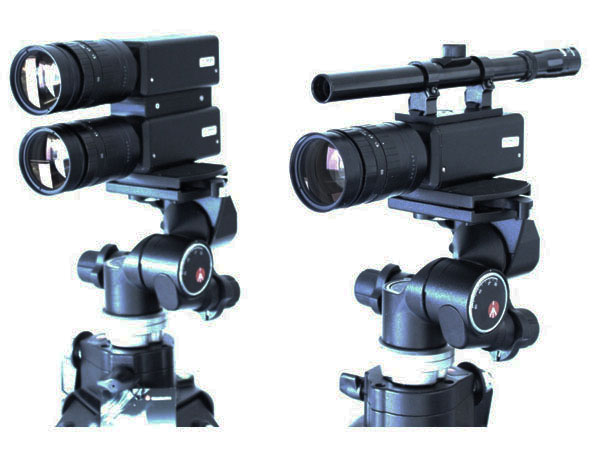

Product gallery
Procurement, compliance & support
Supply is restricted to qualified government, defence and law-enforcement customers or accredited partners. End-use and export controls may apply; local regulations must be observed. Confidential technical information, integration guidance and operator support are available on request.
