MGT Room-Microphone System — Room Microphone System

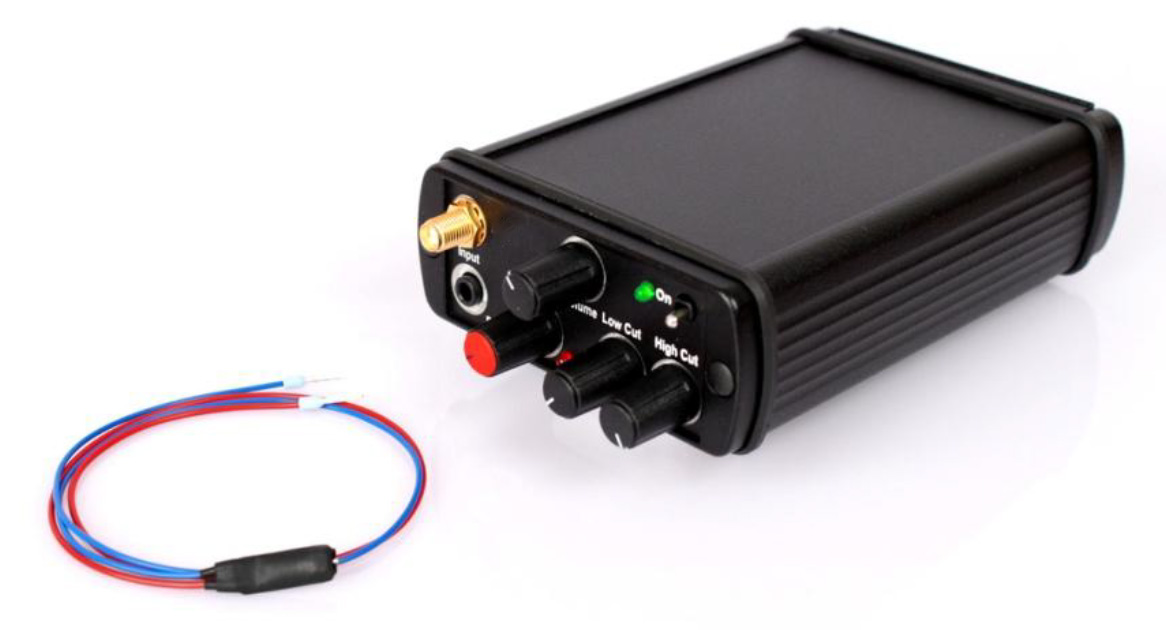

MGT Room-Microphone System is a compact room monitoring platform comprising an amplifier, preamplifier and microphone, developed for professional audio monitoring workflows where clean signal handling and practical operator control are required.
The amplifier unit powers the microphone via a two-wire cable and provides a regulated headphone output together with a line-out connection for monitoring and interfacing. Adjustable gain, low-cut and high-cut settings allow the received signal to be tailored for different room conditions and listening requirements.
- Integrated room microphone system with amplifier, preamplifier and microphone.
- Microphone input (SMA) for system connection.
- 3.5 mm stereo audio output for monitoring workflows.
- Continuously adjustable gain control.
- Switchable high-pass and low-pass filtering for signal optimisation.
- Power from internal 9 V battery or external 6–12 V DC.
Highlights
- Compact enclosure suited to discreet installation and close-range room monitoring tasks.
- Regulated headphone output supports direct listening in field or bench use.
- Line-out connection enables downstream recording or integration workflows.
- Bandpass control helps shape intelligibility according to environment and signal profile.
Technical overview
System
| Audio input | Microphone input (SMA) |
|---|---|
| Audio output | 3.5 mm jack (stereo) |
| Gain control | Continuously adjustable |
| Headphone output | ≥ 16 Ω |
| Power supply | Internal 9 V battery / external 6–12 V |
| Signal shaping | Adjustable low-cut and high-cut filtering |
Product gallery
Procurement, compliance & support
Supply is restricted to qualified government, defence and law-enforcement customers or accredited partners. End-use and export controls may apply; local regulations must be observed. Confidential product information, technical guidance and operator support are available on request.
